Portable P.A - Matrix Systems

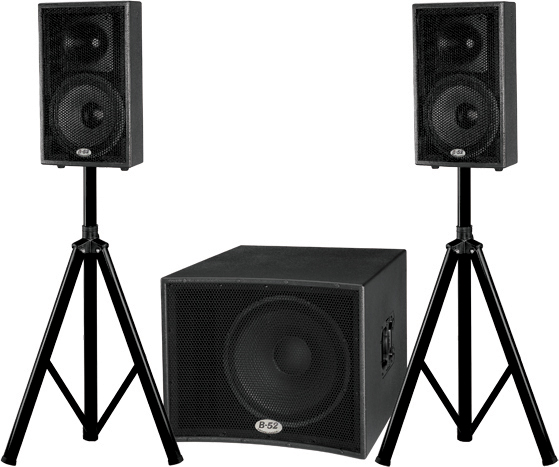

Matrix-1000 V2

700-watt Active Speaker System – 15” Subwoofer and 2 x 10” Satellites
The MATRIX-1000 V2 is a complete sound reinforcement solution comprising of two 10” two-way satellites, a dedicated 15” subwoofer and a built-in three-channel 700-watt power amplifier. The three-channel amplifier features three distinct volume controls, electronic crossover with equalization and a VCA compressor. The circuitry is designed and fine-tuned to integrate all components for the best possible sound. There is no need to finesse settings on a crossover or compressor to make your system sound great. Simply roll the system into place on its heavy duty casters, plug in the AC, connect the two speaker cables, run two XLR cables to your mixer and you’re ready to go!

Features

Amplifier Specifications
• Subwoofer Amp Output : 400 Watts
• Satellite Amp Output : 2 x 150 Watts
• Line in : XLR Female
• Parallel out : XLR Male
• Input Impedance : 48 k Ohms
• Speaker Out : Speakon-style Connector
• Crossover Frequency : 120 Hz; 24 dB / Octave

10" Two-Way Specifications
• Speaker Input : Speakon-style connector (pin 1+ = +, pin 1- = -)
• LF/MF Woofer : 10” Custom-built Transducer
• HF Driver : 1” Titanium Diaphragm on Elliptical Wave Guide
• HF Dispersion : 90° x 60° (upright)
• Nominal Impedance : 8 Ohms
• Active Freq. Response : 120 – 19K Hz +/- 3 dB
• Crossover Freq. (passive) : 2.5k Hz; 12 dB / Octave
• SPL (1w/1m) : 101 dB (half space)
• Max. SPL : 124 dB
• Weight : 30 lbs
• Dimensions (Upright) : 19” (H) x 12” (W) x 11” (D)

Subwoofer Specifications
• Speaker : 15” Custom-built Subwoofer
• Nominal Impedance : 8 Ohms
• Sub. Freq. Response : 40 Hz – 120 Hz +/- 3dB
• SPL (1w/1m) : 102 dB (half space)
• Max. SPL : 127 dB
• Weight : 120 lbs
• Dimensions (Transit) : 28” (H) x 19” (W) x 23” (D)

Complete System
• Weight : 180 lbs
• Dimensions (Transit) : 39” (H) x 19” (W) x 23” (D)

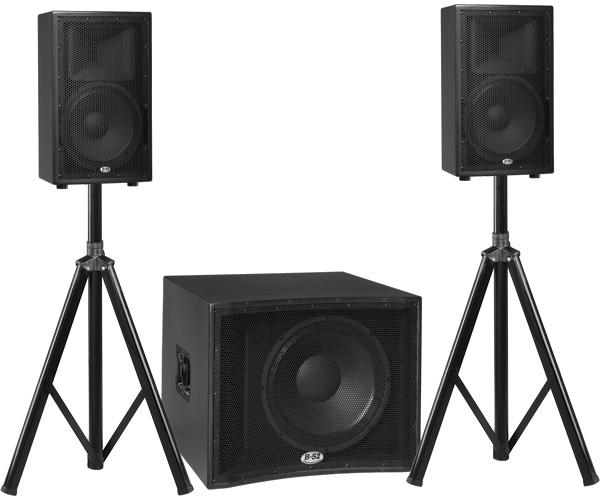

Matrix-2000

1200-watt Active Speaker System – 18” Subwoofer and 2 x 12” Satellites
The MATRIX-2000 is a complete sound reinforcement solution consisting of two 12” two-way speakers and an 18” subwoofer, equipped with a built-in 1200-watt three-channel amplifier. The three-channel amplifier houses all the electronics required to run the system including electronic crossovers, equalization and compressors. The electronic circuity is fine tuned to match all of the speaker components for the best possible sound. The MATRIX-2000 is designed for easy operation, as you do not need to tweak frequencies or finesse complicated compressor settings. To set-up the system simply connect the XLR right and left signal cables, speaker cables and powercord and you’re ready to perform!

Features
Amplifier Specifications
• Subwoofer Power Output : 600 W @ 8 Ohms
• 12” Two-Way Power Output : 2 x 300 W @ 4 Ohms
• Line in : XLR Female
• Parallel Out : XLR Male
• Speaker Outs : Speakon Connector
• Power Requirement : 115V<>50/60Hz<>10A
                                  230V<>50/60Hz<>5A

12" Two-Way Specifications
• Speaker Input : Speakon style connector
• Loudspeaker : 12” Custom Built B-52 Transducer
• Compression Driver : 1” Exit Titanium Diaphragm on Constant
                                  Directivity Horn
• HF Dispersion : 90° x 40°
• Nominal Impedance : 4 Ohms
• Active Freq. Response : 120 – 20K Hz
• X-over Freq. (passive) : 1.6K Hz 12 dB/Octave
• Maximum SPL : 126 dB
• Weight : 40 lbs
• Dimensions (Upright) : 23” (H) x 14” (W) x 13” (D)

18" Subwoofer Specifications
• Loudspeaker : 1 x 18” Cast-Framed, 4” Voice Coil
                        Custom Subwoofer
• Nominal Impedance : 8 Ohms
• Subwoofer Freq. Response : 30 – 120 Hz
• Max. SPL : 129 dB
• Active Crossover : 120 Hz 24 dB/Octave
• Subsonic filter : 30 Hz
• Weight : 160 lbs
• Dimensions (Transport) : 30” (H) x 28” (W) x 23” (D)
