Syarikat Instraco (M) Sdn Bhd

Speaker Enclosures - MX Series

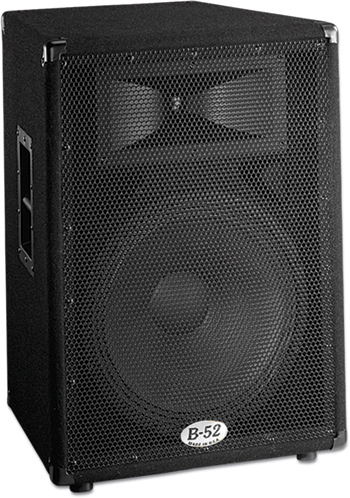

MX 15

5" Two-Way Speaker System
The B-52 MX-15 offers excellent output and full bandwidth coverage. The sonic accuracy of the MX-15 makes it ideal for both live sound and music replay. It can be coupled to a B-52 subwoofer for an outstanding three-way system. A pole-mount adaptor allows the MX-15 to play above a crowd with strong projection.

Features
• Nominal Impedance : 8 Ohms
• Frequency Response : 40-19K Hz
• High-Freq.Dispersion : 90 x 40
• X-Over Points : 1.6K Hz
• Power Handling : 300 watts
• SPL @1w1m : 97 dB
• Peak SPL : 128 dB
• Dimensions (W”x H” x D”) : 19 x 27 x 17
• Weight (lbs) : 66

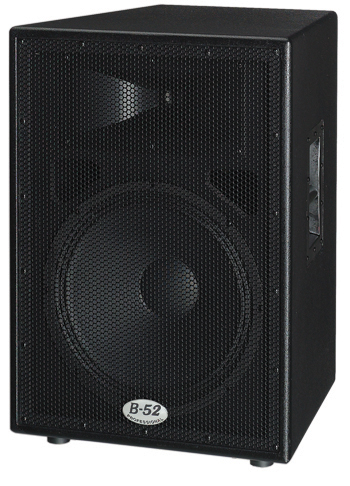

MX 15P

5" Two-Way Speaker System
The B-52 MX-15 offers excellent output and full bandwidth coverage. The sonic accuracy of the MX-15 makes it ideal for both live sound and music replay. It can be coupled to a B-52 subwoofer for an outstanding three-way system. A pole-mount adaptor allows the MX-15 to play above a crowd with strong projection.

Features
• Nominal Impedance : 8 Ohms
• Frequency Response : 40-19K Hz
• High-Freq.Dispersion : 90 x 40
• X-Over Points : 1.6K Hz
• Power Handling : 300 watts
• SPL @1w1m : 97 dB
• Peak SPL : 128 dB
• Dimensions (W”x H” x D”) : 19 x 27 x 17
• Weight (lbs) : 66

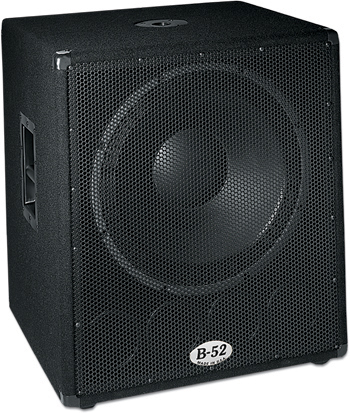

MX 18S

18” Subwoofer
MX-18S delivers deep, rich bass and extends the low frequency response of any MX-Series full-range system to its lowest octave. It utilizes a cast-framed 18” subwoofer with a 3.5” high-temperature, polyamide voice coil. A pole mount adapter provides for easy installation of a metal tube to support the MX-15.

Features
• Nominal Impedance : 8 Ohms
• Frequency Response : 30-160 Hz
• High-Freq.Dispersion : N/A
• X-Over Points : N/A
• Power Handling : 550 watts
• SPL @1w1m : 99 dB
• Peak SPL : 130 dB
• Dimensions (W”x H” x D”) : 23 x 26 x 22
• Weight (lbs) : 90 Ibs
