Overview

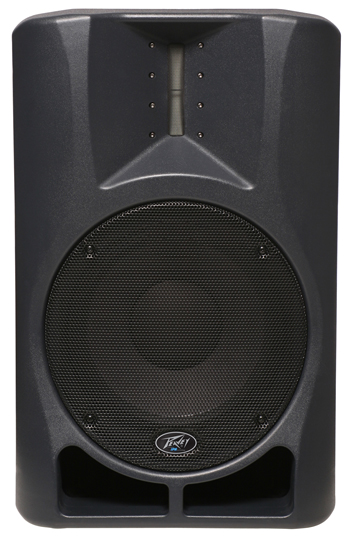

The new Impulse® 12D powered enclosure features a true ribbon driver and a 12" field-replaceable dual voice coil premium neodymium speaker. A Woofer Servo circuit monitors back-EMF and controls cone motion, ensuring the cone's movement mirrors the driving signal from the power amp, and resulting in very low distortion, high power handling and rock-solid low-frequency attack. The advanced new ribbon driver--an exclusive Peavey design based on the ribbons used in the Peavey Versarray™ line array provides 90° H x 30° V coverage, with sonically transparent reproduction.
Utilizing Peavey's revolutionary IPR™ power amplifier technology, the Impulse 12D produces 1,200 watts of efficient power while weighing a very lightweight 39 lbs. IPR amplifiers are designed with a lightweight switch-mode power supply and a high-speed class D topology that yields the highest audio resolution and efficiency available.
The Input section features two input channels and a line output, with a mix of I/O options such as combination XLR-1/4" jacks, RCA and install-ready Phoenix connections. Input channels 1 and 2 also have mic/line source switches and gain controls. The Auto-Off function automatically shuts off the power when it no longer detects a signal, while the Line Out allows the user to chain multiple units or send the input signal to another source.
The DynaQ™ section offers advanced tone controls such as Bass Enhancer, which is an overall loudness boost; a Music/Speech switch that provides optimized EQ settings for each audio type; and Contour, specially configured for program music. A module bay allows for future expansion including Wireless I/O, Delay/Time Adjustment, Mixer Expander, Ethernet I/O and more.
The Impulse 12D is housed in a durable, injection-molded enclosure that includes a pole mount, three flying points and a tilt-back design to facilitate use as a personal monitor.
Features
• Auto off control
• Two independently mixed input channels, with level controls and mic/line switch
• 12" field-replaceable dual voice coil premium neodymium speaker
• Two-way, bi-amplified, optimized active servo drive loudspeaker system
• Proprietary 120 mm ribbon driver on a low-coloration wave guide
• Combo XLR-1/4" and Phoenix connectors on channel 1
• Combo XLR-1/4" and RCA connectors on channel 2
• XLR, 1'4" TRS and Phoenix outputs on Line Out
• Woofer Servo technology
• Exclusive DDT™ anti-clipping protection
• Bass Enhancement circuit provides automatic equal loudness compensation
• Mounting bay for optional input function modules
• Rugged polypropylene molded enclosure with tilt-back design for monitor use
• Pole mount molded-in
• Top, bottom and side flying point inserts
• LED control switch: Power/signal/Off
• 1,200 watts from Peavey IPR(YM) power section
• Weight Unpacked: 39.68 lb(18 kg)
• Weight Packed: 44.09 lb(20 kg)
• Width Packed: 18.5"(46.99 cm)
• Height Packed: 27.625"(70.1675 cm)
• Depth Packed: 18.5"(46.99 cm)
|
