Syarikat Instraco (M) Sdn Bhd

Lighting - Moving Head

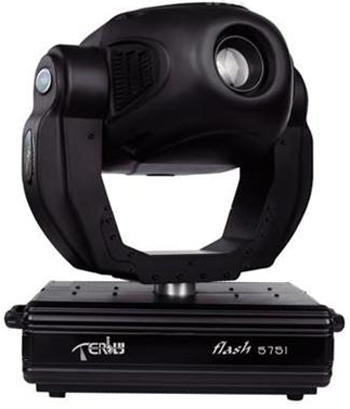

Spot Head - FL 5751

Features

• Lamp: 575W Phillips MSR 575/2, 7200K, base GX9.5
• Control signal: standard DMX-512, 16 channels (16 bit),14 channels (8 bit)
• Stand alone operation with master/slave function,can be sound activated
• Pan/tilt movement:
  Movement: Pan 630°(optional:540°),Tilt 265°
  Scan position memory, auto reposition after unexpected movement
• 8 colors plus white, with two direction rainbow effect,
• Rotating gobo wheel has 6 rotating gobos plus open, with gobo indexing and different speed gobo
  shake and rainbow effect
• Static gobo wheel has 7 static gobos plus open with different speed gobo shaking and rainbow
  effect
• Simple replacement system for gobos enable freely customization
• Prism and prism rotating, with 16 prism macros
• Step zoom function, 18°,22°,26° lens can be selected
• Strobe effect :0~13 flashes per second or random strobe
• Dimmer intensity from 0%~100%
• Iris from 5% to 100%, with pulse Iris effect
• Separately stepless frost filters to get soft beam
• Local and remotely reset and lamp on/off
• Preset program: 8 built in programs can be called up via DMX controller
• Power: AC 100~240V, 50/60 Hz
• Packing dimension: 730x580x630mm
• Net weight: 36kgs
• Gross weight: 40kgs

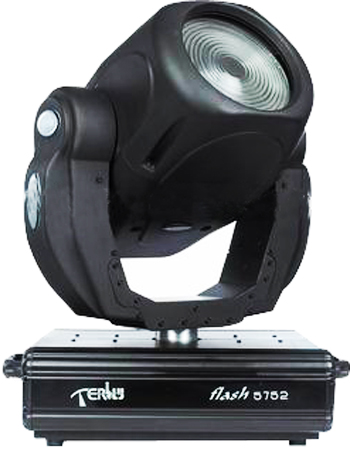

Wash Head - FL 5752

Features

• Lamp: 575W Philips MSR 575/2, 7200K Base:GX9.5
• Control signal: standard DMX-512 16 channels (16 bit) or 14 channels (8 bit)
• Stand alone operation with Master/Slave function, sound activated via built in microphone.
• Pan and tilt movement:
  Movement: Pan 540°/630° optional,Tilt 265°
  Scan position memory, auto reposition after unexpected movement
• Zoom: radiation angle motorized adjustable from 7° to 28°
• Strobe/shutter: high speed strobe, 0-10Hz or random strobe.
• Colours: Basic colour wheel with 4 dichroic mirrors, 2 colour temperature correction filters and UV
  filter, plus white, two direction rainbow effect.
• Advanced C, M, Y colour system, can get infinite colour effect
• Colour and C, M, Y wheel macros effect
• Effect wheel: Full beam, beam shaper or frost filter can be selected.
• Auto-program: 8 pre-built programs can be selected.
• Local and remotely reset and lamp on/off
• Power: AC 100~240V, 50/60 Hz
• Packing dimension: 720x570x620mm
• Net weight: 34kgs
• Gross weight: 39kgs

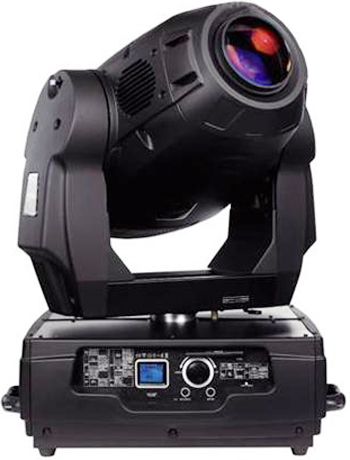

Spot Head - V 1200FC

Features

• Lamp: Philips MSR GOLD 1200 SA/DE, CT:6000 K, Life: 750H
• Control channel: 25 channels, optinal 37 extended channel model
• Pan movement: 540°/630° optional (16 bit )
• Tilt movement: 265° (16 bit )
• CMY + CTO color mixing
• Color wheel: 6 interchangeable dichroic filters plus open
• 2 Rotating Gobo wheels: each has 5 interchangeable, indexable, rotating, gobos plus open
• Effect wheel: rotating 3 facet prism, trapezia prism, 5 facets prism and frost
• Shutter: Variable from 1-13 flashes per second or random strobe
• Electronic strobe: special design ZAP effect can reach 50Hz.
• Dimmer: 0~100% full range dimming
• Focus: motorized focus
• Zoom: 14°~36° linear zoom
• Iris: motorized linear change from 5%~100%
• Animation wheel: can make special dynamic flame or water effect
• Friendly colored LCD display
• Electronic ballast: enhanced light output, lamp flicker-free, less weight
• Wireless receiver pre-installed: No time-consuming on signal cable connection and trouble
  shooting on defective cables, no signal declination from cable, connections
• RDMX: remote DMX addressing, lamp on/off, Sound control switch by controller.
• Rechargeable back up battery for display: no need external power supply, enable user to enter
  display menu for address setting or access other functions setting.
• Optional version:
   V1200S-E: without wireless receiver pre-installed.
• Power: AC208~240V, 50/60HZ
• Carton Packing Dimension: 81x74x86cm
• Flight Case Packing Dimension: 63x56x106cm
• Net Weight: 49kgs
• Gross Weight with Carton: 63kgs
• Gross Weight with Flight Case: 92kgs
