In-Ear Monitor - Receiver

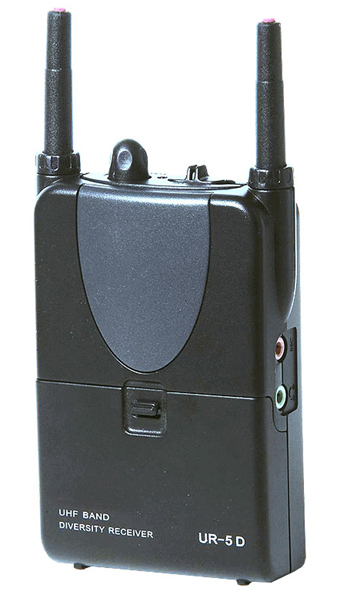

UR-5D

Features

• Carrier Frequency Range: UHF 520~928MHz.
• Mini receiver, diversity, stereo mode.
• Professional PLL synthesized control with 16 preset UHF frequencies.
• The compact mini receiver is supplies with high-quality stereo ear-piece, which provides the
  performer with clear and interference free monitoring.
• Diversity technology ensures reception quality.
• Power, RF and volume control for status monitoring.
• Integrated charging function is best for cost-saving and environmental protection.
• Powered by 2 x 1.5V AA size batteries or rechargeable batteries.
• Collocated with UF-18E or UT-18E for creating your own personal wireless microphone system.
• Easy to carry for all professional broadcast, recording, touring and installed sound applications.
• FCC, CE , RoHS Conform.



Specifications

• Frequency Range : UHF 520 - 928 MHz
• Case : Bodypack Receiver
• Oscillator : PLL Synthesized
• Receiving Mode : Single Channel
                            Diversity
• Frequency Stability : ±0.005%
• Receiving Sensitivity : At 10 uV over 80dB S/N ratio
• Image & Spurious Rej : 80 dB minimum
• Selectivity : > 50 dB
• Modulation Mode : FM
• IF Frequancy : 1st: 56MHz 2nd: 10.7MHz
• Dynamic Range : >96dB
• Tone Signal : NIL
• S/N Ratio : >80dB, at 15KHz deviation and 60dBuV antenna input
• AF Response : Headphone: 100Hz to 10KHz3dB) Line: 60Hz to 15KHz3dB)
• T.H.D.  : <1% (at 1KHz)
• Display : ROTARY
• Power Supply : DC 3V ( 2 x 1.5V AA batteries or rechargeable batteries)
• Audio Output : Headphone stereo output: 40mW, Line stereo output level: -5dB
• Current Consumption : 115mA ± 10mA
• Dimension (mm)WxHxD : 76 x 106 x 29
