Wireless System - UD 93

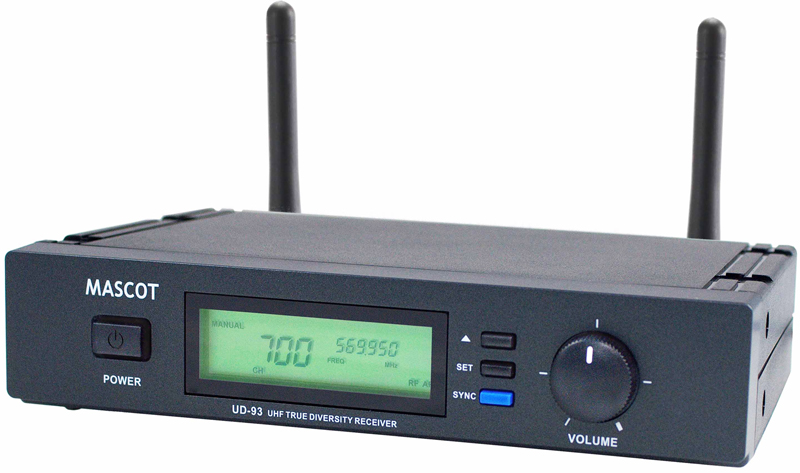

UD 93

Features

• True diversity technology ensures the reception quality stedy and minimizing dropouts.
• Multichannal microphones per frequency range which can be operated simultaneously.
• Sync function for wireless transmission of frequencies to transmitters.
• Scan function searches for unused frequencies.
• Adjustable squelch for eliminating RF interference.
• Crystal-clear reception due to dynamic processor.
• Channel and volume settings are adjusted via front panel.
• The LCD screen displays selected channel, frequency and RF/AF signal strength.
• Output is via 3 pin XLR balanced or Ø 6.35mm unbalanced.
• The system operates from 12V dc (power supply included).
• BNC connectors provide connection to the supplied antennas or to coaxial cable used with an
  antenna divider, antenna boosters or detachable antennas.

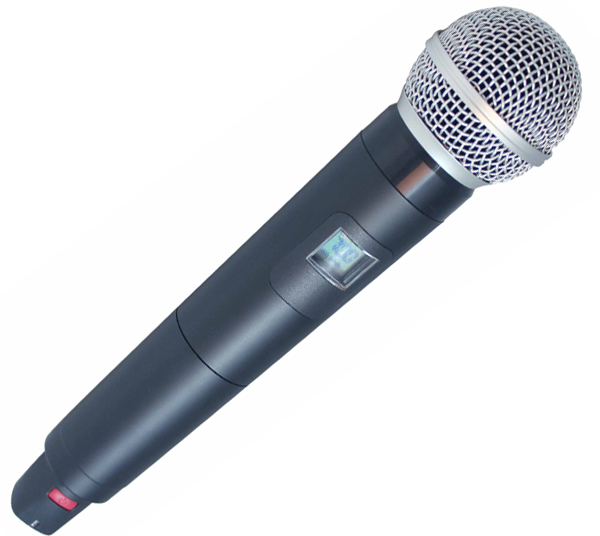

UF 63

Features

• Carrier Frequency Range: UHF 520 ~ 928MHz.
• 700 selectable frequencies make it easy to set up multiple systems' configurations and avoid
  interference frequencies.
• Uni-directional dynamic U-283 or uni-directional electret condenser ECM-1441 capsule options for
  using on different performance required.
• Bulit-in antenna for optimized RF output and optimum transmission quality.
• Metal housing handheld microphone and special noise absorption parts inside the grille, which
  eliminate the touching noise.
• Patented battery cover design ensures the battery stable without loosing during the operation.

Specifications

• Type : Handheld
• Frequency Range : UHF 520 - 928 MHz
• RF Power Output : 10mW (max.)
• Oscillator : PLL Synthesized
• Frequency Stability : ± 0.005%
• Maximum Deviation : ±48KHz with limiting compressor
• Spurious Emission : >60 dB below carrier frequency
• T.H.D. : <1% (at 1KHz)
Battery : 1. DC 2.4V (1.2V x 2 AA size rechargeable batteries)
              2. DC 3V (1.5V x 2AA size batteries)
• Tone Key : 32.768KHz
• Mic Unit : Uni-directional dynamic unit (U-281, U-280, U-283)
                 Uni-directional electret condenser unit (ECM-1441, ECM-103)
• Display : LCD
• Current Consumption : 120mA ± 5mA
• Dimension (mm)WxHxD : 253mm x 55Φ

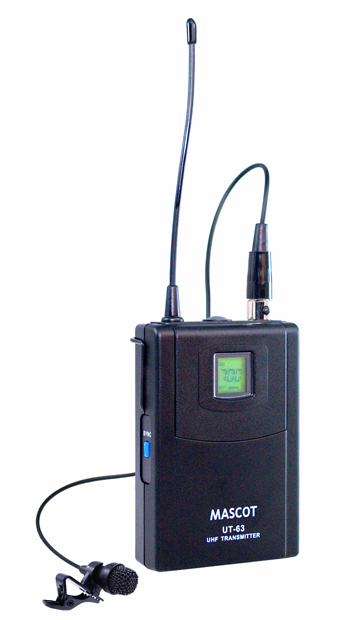

UT 63

Features

• Carrier Frequency Range : UHF 520 ~ 928MHz.
• 700 selectable frequencies make it easy to set up multiple systems' configurations and avoid
  interference frequencies.
• Collocated with lavalier or headset microphone for various application.
• Multi-function LCD shows channel and battery power status.
• Integrated charging function for cost-saving and environmental protection ( 2 x 1.5V
  AA Size batteries).

Specifications

• Type : Lavalier / Headset
• Frequency Range : UHF 520 - 928 MHz
• RF Power Output: 10mW (max.)
• Oscillator : PLL Synthesized
• Frequency Stability : ± 0.005%
• Maximum Deviation  : ±48KHz with limiting compressor
• Spurious Emission : >60 dB below carrier frequency
• T.H.D. : <1% (at 1KHz)
• Battery : 1. DC 2.4V (1.2V x 2 AA size rechargeable batteries)
                2. DC 3V (1.5V x 2AA size batteries)
• Tone Key : 32.768KHz
• Mic Unit : Uni-directional electret condenser unit
• Display : LCD
• Current Consumption : 120mA ± 5mA
• Dimension (mm)WxHxD : 65 x 100 x 27
