Dark Matter™ Series

Thanks to their advanced DSP-equipped power section, the high-S.P.L. Dark Matter™ enclosures deliver best-in-class performance. The Dark Matter enclosures feature modern styling and come in four available models: DM™ 112, DM™ 115, DM™ 118 SUB and DM™ 115 SUB. These enclosures are perfect for band, DJ or other musical applications.

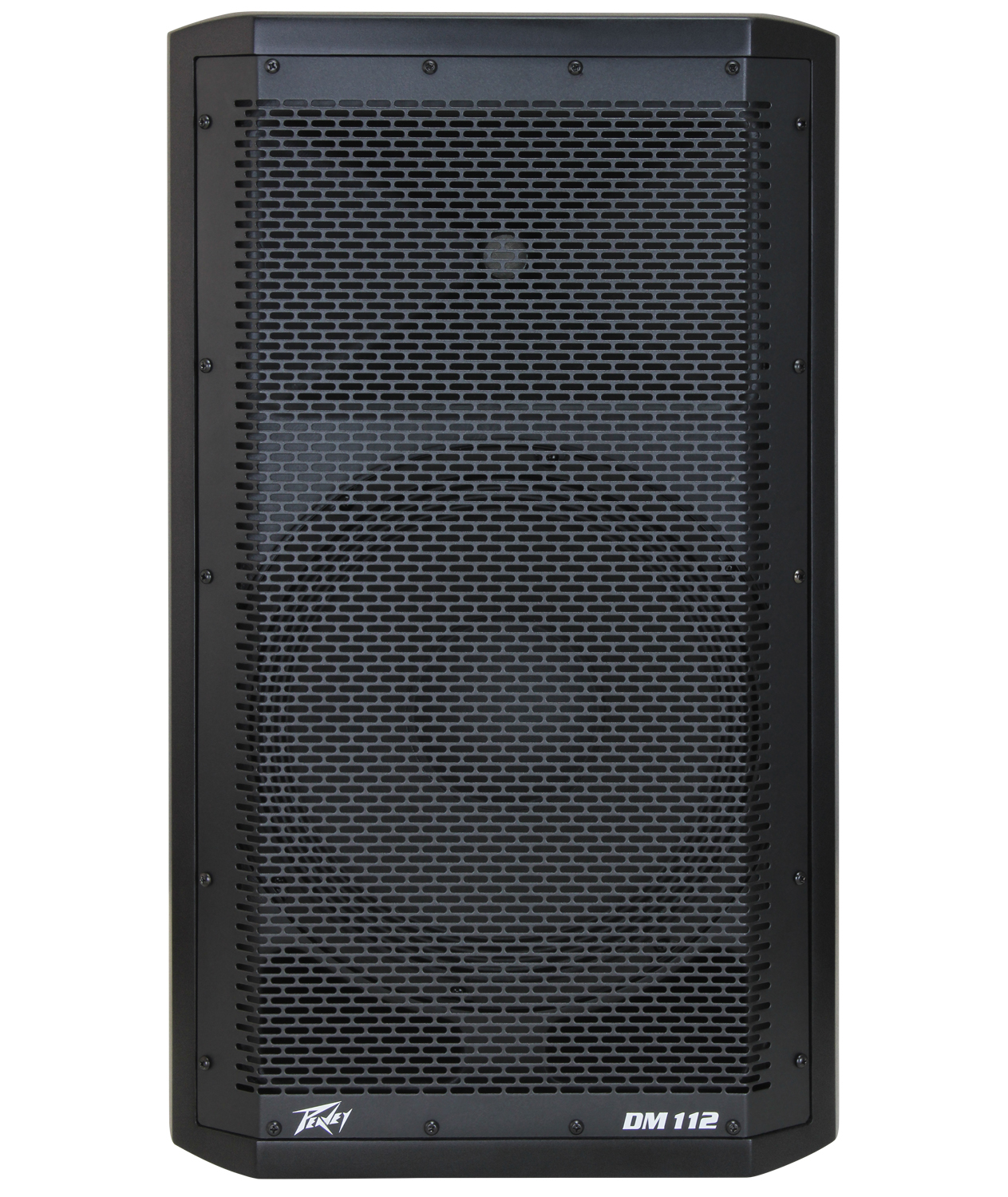

DM™ 112

Overview

Fan cooled for maximum reliability, the DM 112 features Peavey's exclusive Quadratic Throat Waveguide™ technology that helps deliver pristine, precise sound. The ultra-reliable Dark Matter series enclosures are built tough with steel grilles and rugged injection molded cabinets. Their convenient design allows for use as floor monitors or pole-mounted speakers. Perfect for band, DJ or other musical applications, the Dark Matter enclosures produce crystal clear professional audio.

Features

• Two-way bi-amplified analog amp powered speaker system

• DSP I/O is at 96 kHz and 24 bits, with low-jitter, professional grade components

• Fan cooled for maximum reliability

• Exclusive Quadratic Throat Waveguide™ technology, 110 by 80 degree coverage

• A Mic/Line switch provides for two different gain settings

• Thru output is via a male XLR jack

• Multiple Factory Preset EQ settings for the DSP crossover system

• Dynamic bass boost function

• Rugged plastic injection-molded trapezoidal enclosure

• Cabinet has dual rear corner angled sides for floor monitor use.

• Full-coverage perforated steel grille, with powder coat finish

• DX™14 compression driver, with 1.4 inch titanium diaphragm

• Pole mount molded-in for 1 3/8" diameter poles

• 12" heavy-duty woofer

• Input is via a combo female XLR and 1/4" TRS phone jack with balanced input

• User Preset EQ storage provisions allow storing custom presets for later recall

• DSP processing is 64 bit double-precision

• Weight Unpacked: 35.05 lb(15.9 kg)

• Weight Packed: 41.89 lb(19 kg)

• Width Packed: 16.929"(42.99966 cm)

• Height Packed: 25.197"(64.00038 cm)

• Depth Packed: 14.567"(37.00018 cm)

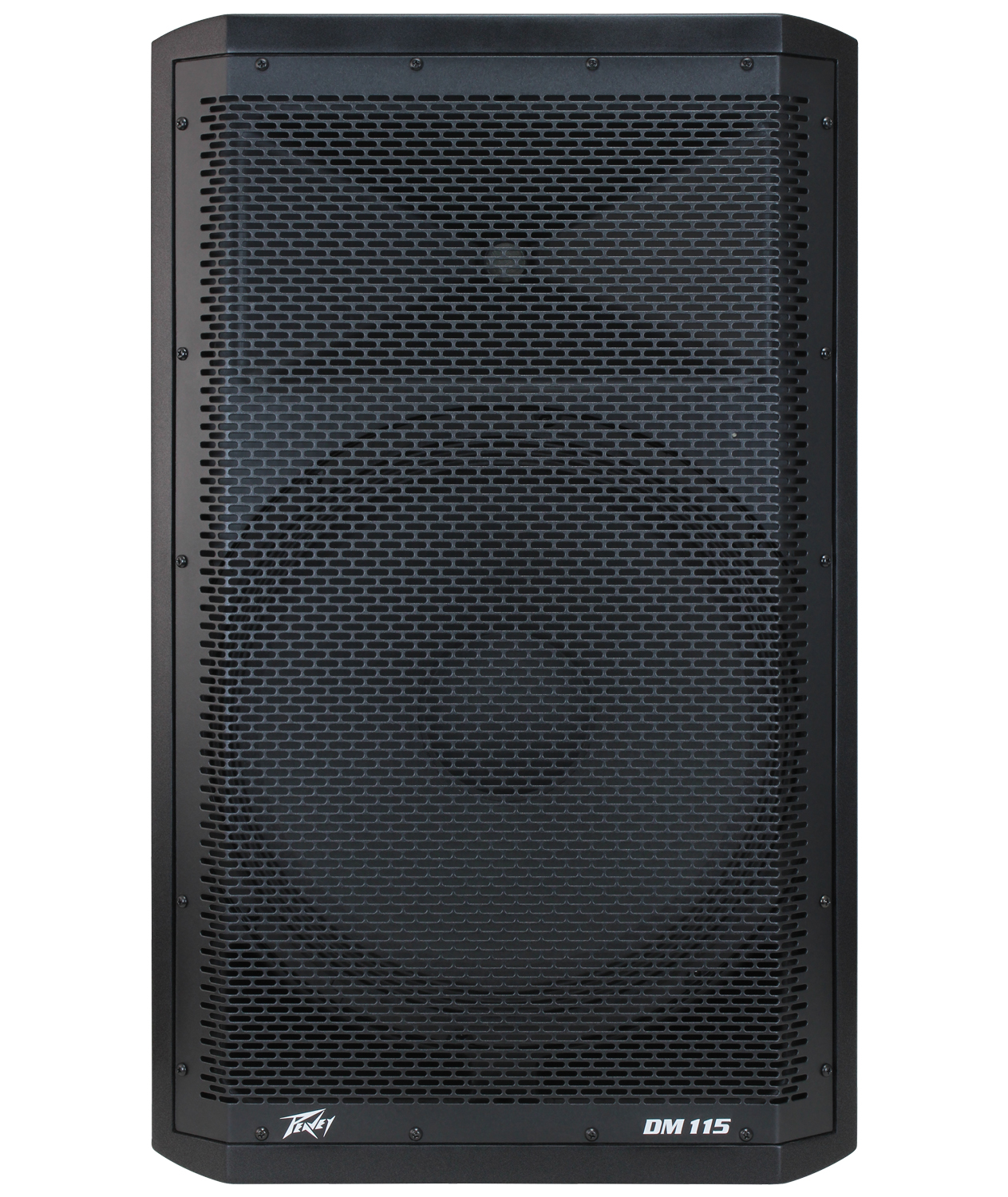

DM™ 115

Overview

Fan cooled for maximum reliability, the DM 115 features Peavey's exclusive Quadratic Throat Waveguide™ technology that helps deliver pristine, precise sound. The ultra-reliable Dark Matter series enclosures are built tough with steel grilles and rugged injection molded cabinets. Their convenient design allows for use as floor monitors or pole-mounted speakers. Perfect for band, DJ or other musical applications, the Dark Matter enclosures produce crystal clear professional audio.

Features

• Two-way bi-amplified analog amp powered speaker system

• DX™14 compression driver, with 1.4 inch titanium diaphragm

• 15" heavy-duty woofer

• DSP processing is 64 bit double-precision

• Dynamic bass boost function

• Input is via a combo female XLR and 1/4" TRS phone jack with balanced input

• Thru output is via a male XLR jack

• Exclusive Quadratic Throat Waveguide™ technology, 110 by 80 degree coverage

• A Mic/Line switch provides for two different gain settings

• Rugged plastic injection-molded trapezoidal enclosure

• DSP I/O is at 96 kHz and 24 bits, with low-jitter, professional grade components

• Cabinet has dual rear corner angled sides for floor monitor use.

• Fan cooled for maximum reliability

• Full-coverage perforated steel grille, with powder coat finish

• Multiple Factory Preset EQ settings for the DSP crossover system

• Pole mount molded-in for 1 3/8" diameter poles

• User Preset EQ storage provisions allow storing custom presets for later recall

• Weight Unpacked: 42.11 lb(19.1 kg)

• Weight Packed: 51.00 lb(23.133 kg)

• Width Packed: 19.291"(48.99914 cm)

• Height Packed: 29.921"(75.99934 cm)

• Depth Packed: 16.535"(41.9989 cm)

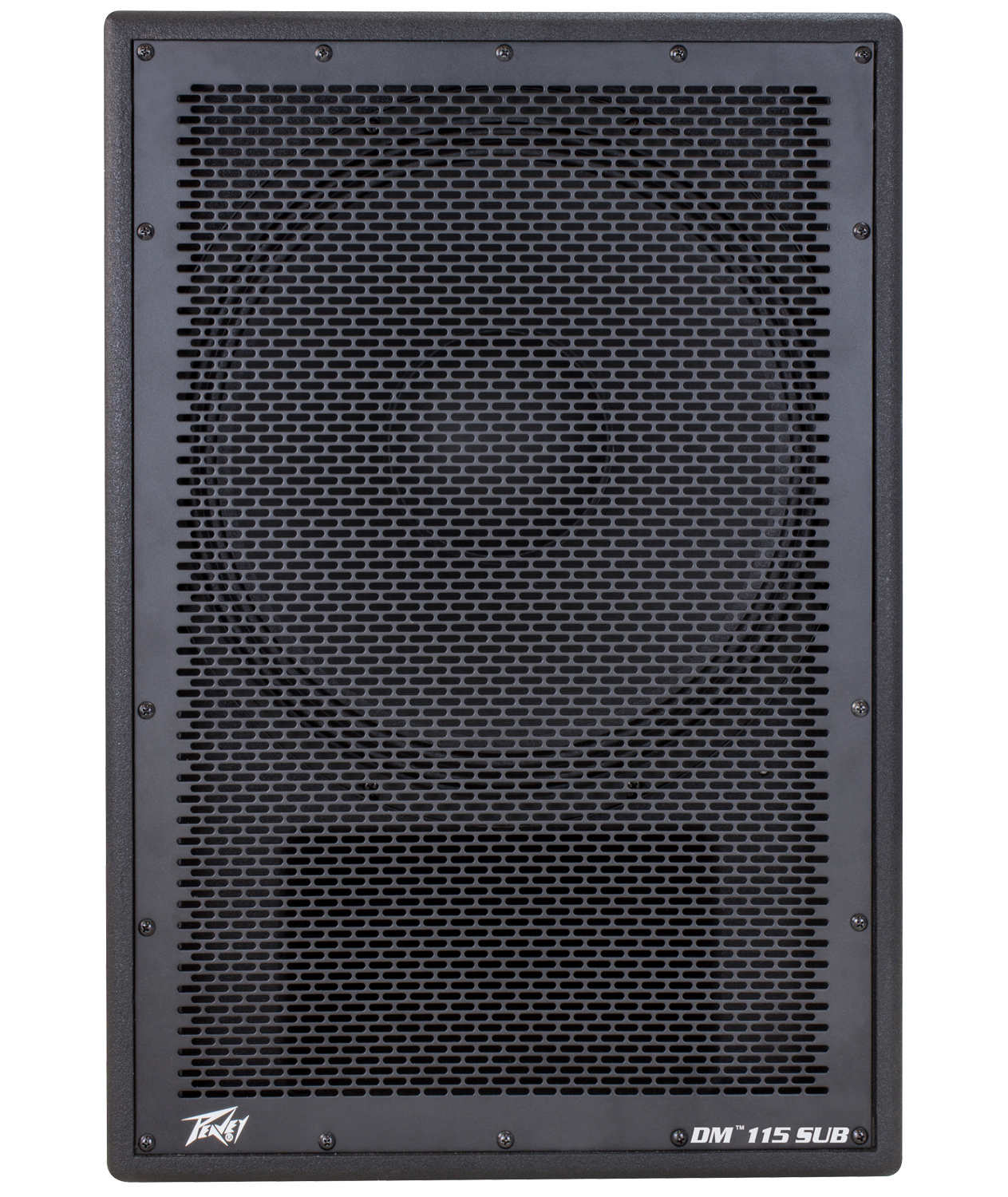

DM™ 115 Sub

Overview

The DM 115 Sub features an ultra-reliable power section that provides a total of 800 watts of peak available power with DDT™ compression. This powered enclosure also feature a 15" heavy-duty woofer with a 3" voice coil. The DM 115 Sub provides a balanced input via a combination jack that accepts balanced TRS 1/4" input as well as a balanced XLR input. There are two balanced thru high pass XLR outputs, and a full-range XLR output. There is an adjustable Level control, as well as a combination LED indicator, that illuminates when power is on and when the "soft-limiting" DDT circuit is activated.

Features

• Vented bass powered subwoofer enclosures

• 15" premium heavy-duty woofer

• Power amp has forced air cooling for maximum reliability

• Internal line level low-pass/high-pass crossover network

• Fully adjustable Kosmos® C for increased bass impact

• Polarity switch for polarity reversal of subwoofer

• Full-coverage heavy-duty perforated steel grill

• Steel handles

• XLR/1/4" combo jack input

• Compact dimensions for a 15" woofer based sub

• Two high-pass XLR outputs, and one full-range thru XLR output

• Threaded pole mount with speaker pole included

• 800 watts peak available power

• Ground lift switch for lifting cable shield from ground

• Weight Packed: 90.98 lb(41.27 kg)

• Width Packed: 27.5"(69.85 cm)

• Height Packed: 28"(71.12 cm)

• Depth Packed: 21"(53.34 cm)

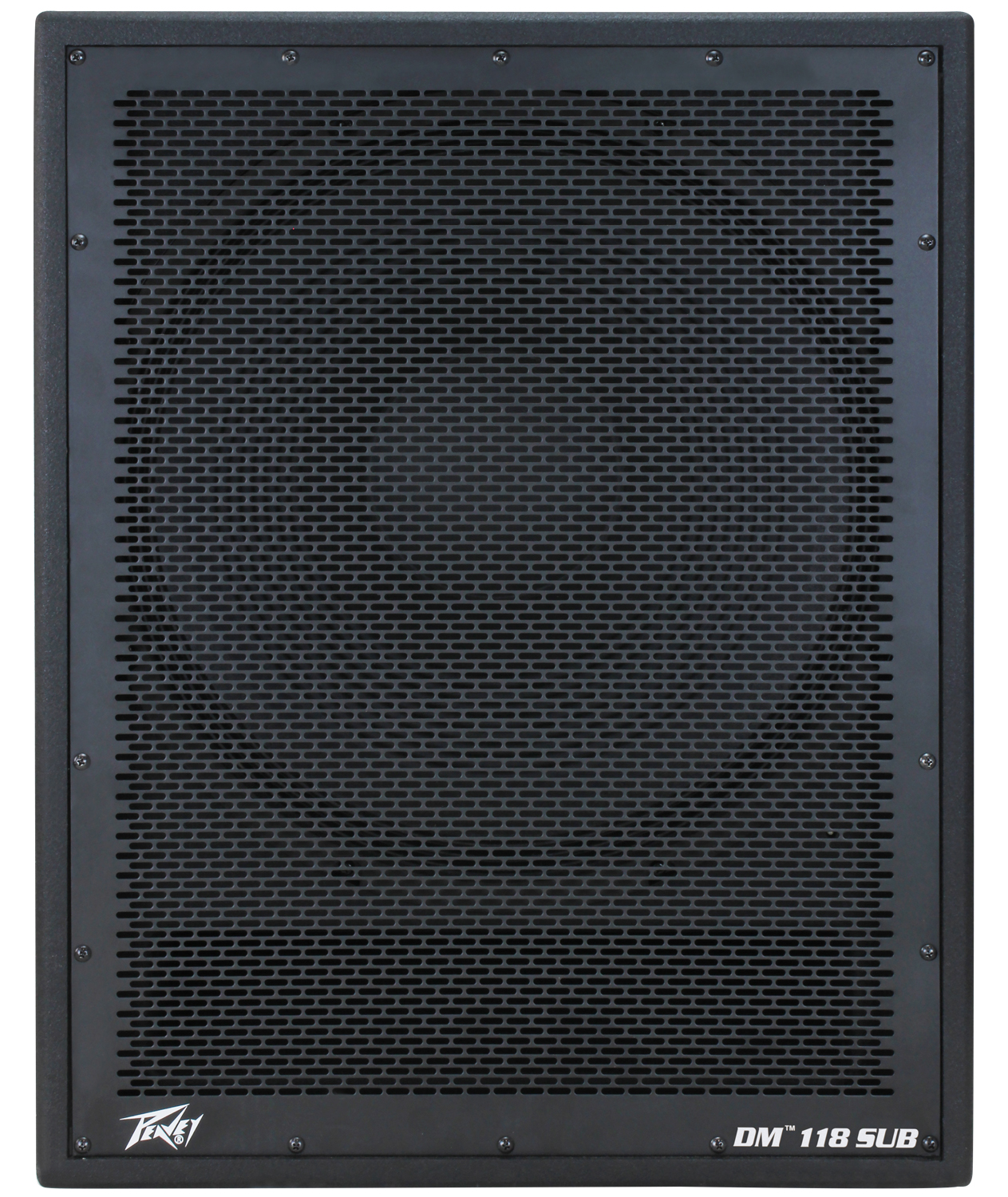

DM™ 118 Sub

Overview

The DM 118 Sub features an ultra-reliable power section that provides a total of 800 watts of peak available power with DDT™ compression. This powered enclosure also features an 18" heavy-duty woofer with a 3" voice coil. The DM 118 Sub provides a balanced input via a combination jack that accepts balanced TRS 1/4" input as well as a balanced XLR input. There are two balanced thru high pass XLR outputs, and a full-range XLR output. There is an adjustable Level control, as well as a combination LED indicator, that illuminates when power is on and when the "soft-limiting" DDT circuit is activated.

Features

• Vented bass powered subwoofer enclosures

• Power amp has forced air cooling for maximum reliability

• Internal line level low-pass/high-pass crossover network

• XLR/1/4" combo jack input

• Two high-pass XLR outputs, and one full-range thru XLR output

• Ground lift switch for lifting cable shield from ground

• Full-coverage heavy-duty perforated steel grill

• Fully adjustable Kosmos® C for increased bass impact

• Steel handles

• Compact dimensions for an 18" woofer based sub

• 18" premium heavy-duty woofer

• Threaded pole mount with speaker pole included

• 800 watts peak available power

• Large heavy-duty locking caster with damped bearings

• Polarity switch for polarity reversal of subwoofer

• Weight Packed: 113.98 lb(51.7 kg)

• Width Packed: 28"(71.12 cm)

• Height Packed: 32"(81.28 cm)

• Depth Packed: 25"(63.5 cm)
