PV Series

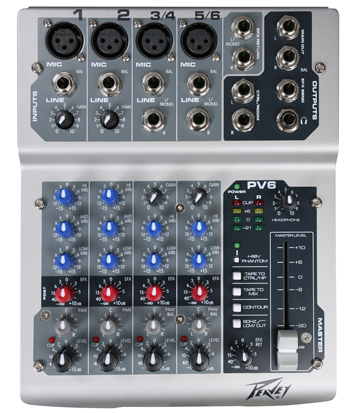

PV 6 USB

Overview

The PV® 6 compact Peavey mixer offers durable construction and excellent sound quality at an unbelievably low price. Made of metal, not plastic, the PV 6 is built tough and designed for either live sound or recording. Its reference quality mic pre-amps are super quiet with less than 0.0007% of total harmonic distortion. Each of the four channels includes XLR and 1/4" inputs, phantom power, EQ and effects send. The master section offers assignable tape input and a master contour EQ which simultaneously cuts mids while slightly boosting the bass and treble in the overall mix. Outputs include L & R for main and control room, effects send and headphones.

Features

• Channels 3 and 5 with stereo line inputs
• 3-band EQ on channels 1-2
• LED clip, signal
• 1 effects send with stereo output
• 1 stereo effects returns
• Control room output
• phantom power, tape to control room and tape to mix assignments
• Stereo Output 1/4 inch balanced connectors
• Rugged console design
• USB port
• 4 RQ™ (reference-quality) low noise microphone inputs
• Weight Unpacked: 5.29 lb(2.4 kg)
• Weight Packed: 7.05 lb(3.2 kg)
• Width Packed: 4.25"(10.795 cm)
• Height Packed: 15.25"(38.735 cm)
• Depth Packed: 10.25"(26.035 cm)

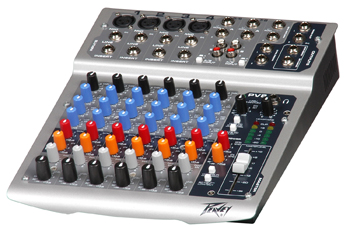

PV 8 USB

Overview

The PV® 8 compact mixer from Peavey is perfect for live or studio applications. The PV 8 mixer's reference quality mic pre-amps are super quiet with less than 0.0007% of total harmonic distortion. Six channels, with one through four having XLR inputs, channel insert, phantom power, 3-band EQ and effects send. The master section offers assignable tape input and a master contour EQ which simultaneously cuts mids while slightly boosting the bass and treble in the overall mix. Outputs include L & R for main and control room, effects send and headphones. Stylish metal casing adds overall strength and durability.

Features

• Channels 5/6 and 7/8 with dual switchable stereo line inputs
• 3-band EQ on all channels
• LED clip, signal, 1 pre-fader monitor send
• 1 post-fader effects send with stereo output
• Control room output
• Global 48 volt phantom power, tape to control room and tape to mix assignments
• Stereo output 1/4 inch balanced connectors
• Rugged console design
• Reaper Software included
• 4 RQ™ (reference-quality) low noise microphone inputs
• Weight Unpacked: 7.10 lb(3.22 kg)
• Weight Packed: 9.00 lb(4.082 kg)
• Width Packed: 4.5"(11.43 cm)
• Height Packed: 17.25"(43.815 cm)
• Depth Packed: 12"(30.48 cm)

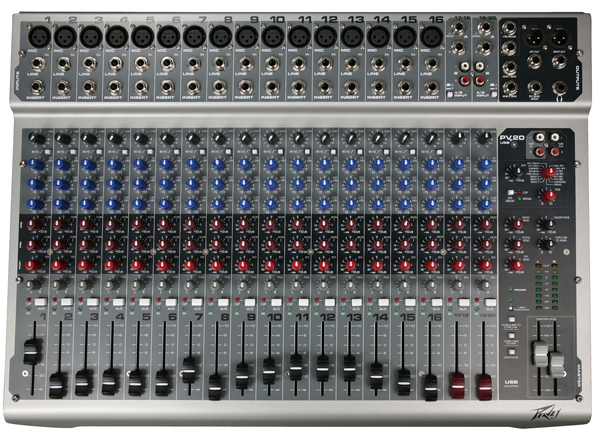

PV 20 USB

Overview

The PV 20 USB features built-in DSP effects with multiple reverbs and delays, plus vocal enhancer and much more, while a USB port allows direct connection to a USB-equipped computer for recording from the mixer or playing back digital audio (compatible with Mac OSX, Windows XP, ME & 2000). It also includes pre-fader monitor sends; post-fader effects send; inserts on all channels; and dual, switchable line inputs on the two stereo channels. All PV Series mixers include our Tape to Control Room and Tape to Mix assigns, which allow the operator to monitor an external stereo signal without using any of the mixer's channels. In addition, the mixers' Control Room output sends a stereo master output signal to an external source for monitoring. Phantom power, effects send and a contour switch are also standard on all models.

Features

• Compatable with Mac OSX, Win XP, ME and 2000
• Built-in DSP effects processor
• Sixteen RQ™ (reference quality) low noise microphone inputs with insert points
• Channels 17/18 and 19/20 with dual switchable stereo line inputs
• 3-band EQ on all channels
• LED clip, signal and mute indication
• Two pre-fader monitor sends
• One post-fader effects send
• Precision 60 mm faders on input channels and stereo master out
• Control room outputs, global 48V phantom power
• Tape to control room and tape to mix assignments
• Stereo outputs with 1/4" unbalanced and XLR balanced connectors
• Rugged console design
• Universal switching power supply
• USB port to connect to a computer for recording or playing back digital audio             to/from computer
• Weight Unpacked: 17.50 lb(7.938 kg)
• Weight Packed: 21.00 lb(9.525 kg)
• Width Packed: 6.12"(15.5448 cm)
• Height Packed: 27.87"(70.7898 cm)
• Depth Packed: 19.5"(49.53 cm)
