PV® Series (Passive)

Proven Party Starters and Essential Gear for the Stage

Hartley Peavey founded Peavey Electronics on the principle of making high-quality, professional gear that sounds great but won't break the bank. We've been honing that art since 1965, and no sound reinforcement line combines performance and value like our PV Series. A full range of enclosures, subwoofers and monitors, the PV Series stacks up with heavy-duty loudspeakers, titanium compression drivers and impressive high-power handling.

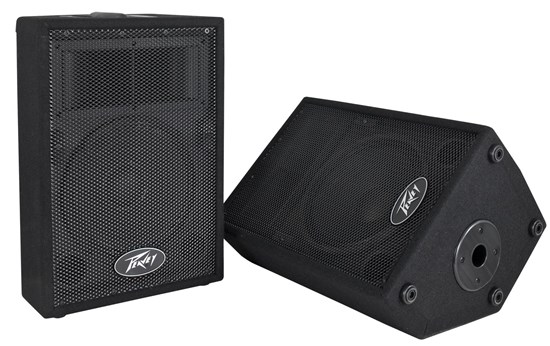

PVi 10 (Pair)

Features

• Carpet covered

• Metal grille

• 10" premium speaker

• Horn-loaded high frequency driver

• Two-way enclosure

• 50 watts continuous, 100 watts program

• Side-position monitor

• Control-mount adaptor

• Weight Unpacked: 37.04 lb(16.8 kg)

• Weight Packed: 40.12 lb(18.2 kg)

• Width Packed: 20"(50.8 cm)

• Height Packed: 28.25"(71.755 cm)

• Depth Packed: 10.25"(26.035 cm)

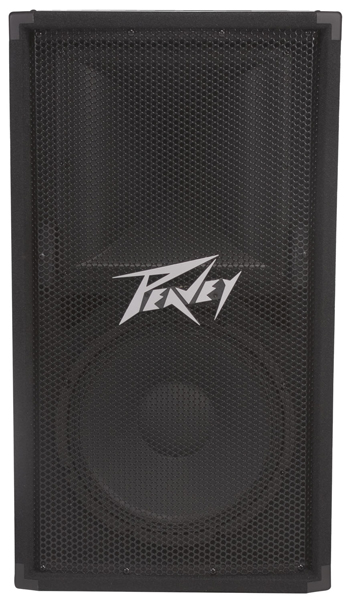

PV 112

Features

• Two-way sound reinforcement enclosure

• 12" heavy/duty woofer

• RX™ 14 titanium diaphragm compression driver

• Dynamic tweeter protection

• 400 watts program/800 watts peak power handling

• Heavy duty crossover network for driver protection and EQ

• Lightweight trapezoidal enclosure

• 60 by 40 degree coverage constant-directivity horn

• High quality, heavy/duty carpet covering

• Steel handles

• Steel corners

• Rugged dado and rabbet construction

• T-nut speaker mounting

• Heavy/duty full-length steel grille

• Steel mount cup

• Weight Unpacked: 45.00 lb(20.412 kg)

• Weight Packed: 50.00 lb(22.68 kg)

• Width Packed: 15.87"(40.3098 cm)

• Height Packed: 29.06"(73.8124 cm)

• Depth Packed: 14.62"(37.1348 cm)

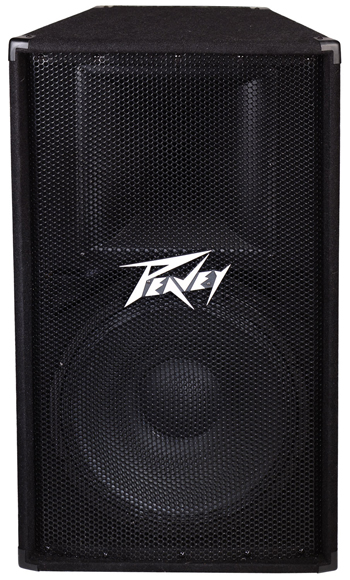

PV 115

Features

• 2-way trapezoidal sound reinforcement enclosure

• 400 watts program, 800 watts peak

• One 15 inch premium, 2 3/8 inch voice coil woofer

• RX14™ compression driver with a 1.4 inch titanium diaphragm 1 inch exit

• 90° x 40° constant directivity horn

• Tweeter protection

• Heavy-duty crossover

• Molded-in pole mounts system

• Heavy-duty metal grill

• Weight Unpacked: 51.81 lb(23.5 kg)

• Weight Packed: 56.22 lb(25.5 kg)

• Width Packed: 16.733"(42.50182 cm)

• Height Packed: 33.662"(85.50148 cm)

• Depth Packed: 16.437"(41.74998 cm)

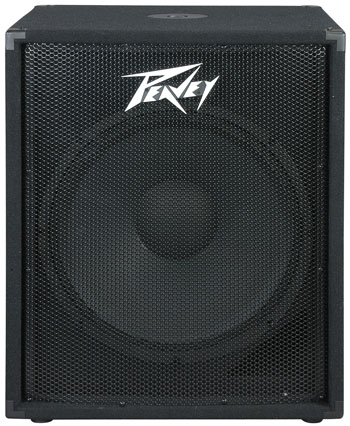

PV 118

Features

• Vented bass subwoofer enclosure

• Pro Eighteen® 18 inch premium woofer

• Optimized internal low-pass crossover network

• Pole mount adapter

• 400 watts program power handling

• 40 Hz - 180 Hz (+/-3 dB)

• 95 dB at 1W/1m

• 8 ohms

• Dado jointed 3/4 inch MDF construction

• Heavy-duty powder-coated metal grille

• Weight Unpacked: 73.50 lb(33.339 kg)

• Weight Packed: 80.00 lb(36.287 kg)

• Width Packed: 24.75"(62.865 cm)

• Height Packed: 29.5"(74.93 cm)

• Depth Packed: 23"(58.42 cm)

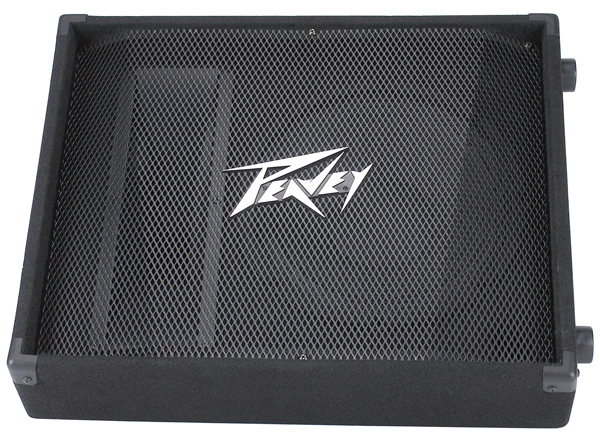

PV 12M

Features

• Two-way floor monitor

• 68 Hz to 17 kHz

• 12" Sheffield Pro 1200+ woofer w/ 2.5" voice coil

• 14T compression driver w/ titanium diaphragm

• 500 W program power handling

• Sound Guard IV tweeter protection

• carpet covering

• steel handle

• Heavy duty metal grille

• die-cast aluminum pole mount

• 90 x 40 CD horn

• Weight Unpacked: 37.50 lb(17.01 kg)

• Weight Packed: 44.00 lb(19.958 kg)

• Width Packed: 19.25"(48.895 cm)

• Height Packed: 24"(60.96 cm)

• Depth Packed: 14.5"(36.83 cm)

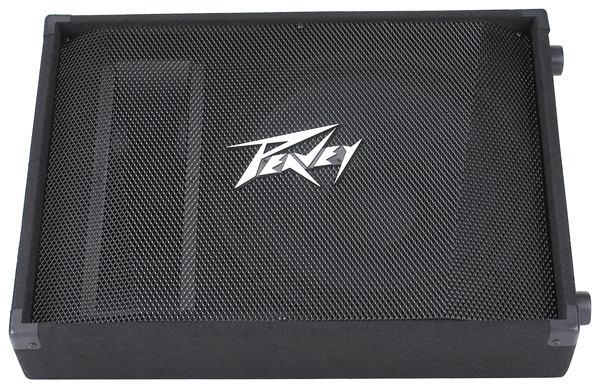

PV 15M

Features

• Two-way floor monitor

• 68 Hz to 17 kHz

• 15" Sheffield Pro 1500+ woofer w/ 2.5" voice coil

• 14T compression driver w/ titanium diaphragm

• 500 W program power handling

• Sound Guard IV tweeter protection

• carpet covering

• steel handle

• Heavy duty metal grille

• die-cast aluminum pole mount

• 90 x 40 CD horn

• Weight Unpacked: 39.00 lb(17.69 kg)

• Weight Packed: 45.00 lb(20.412 kg)

• Width Packed: 19.37"(49.1998 cm)

• Height Packed: 26.37"(66.9798 cm)

• Depth Packed: 14.25"(36.195 cm)
