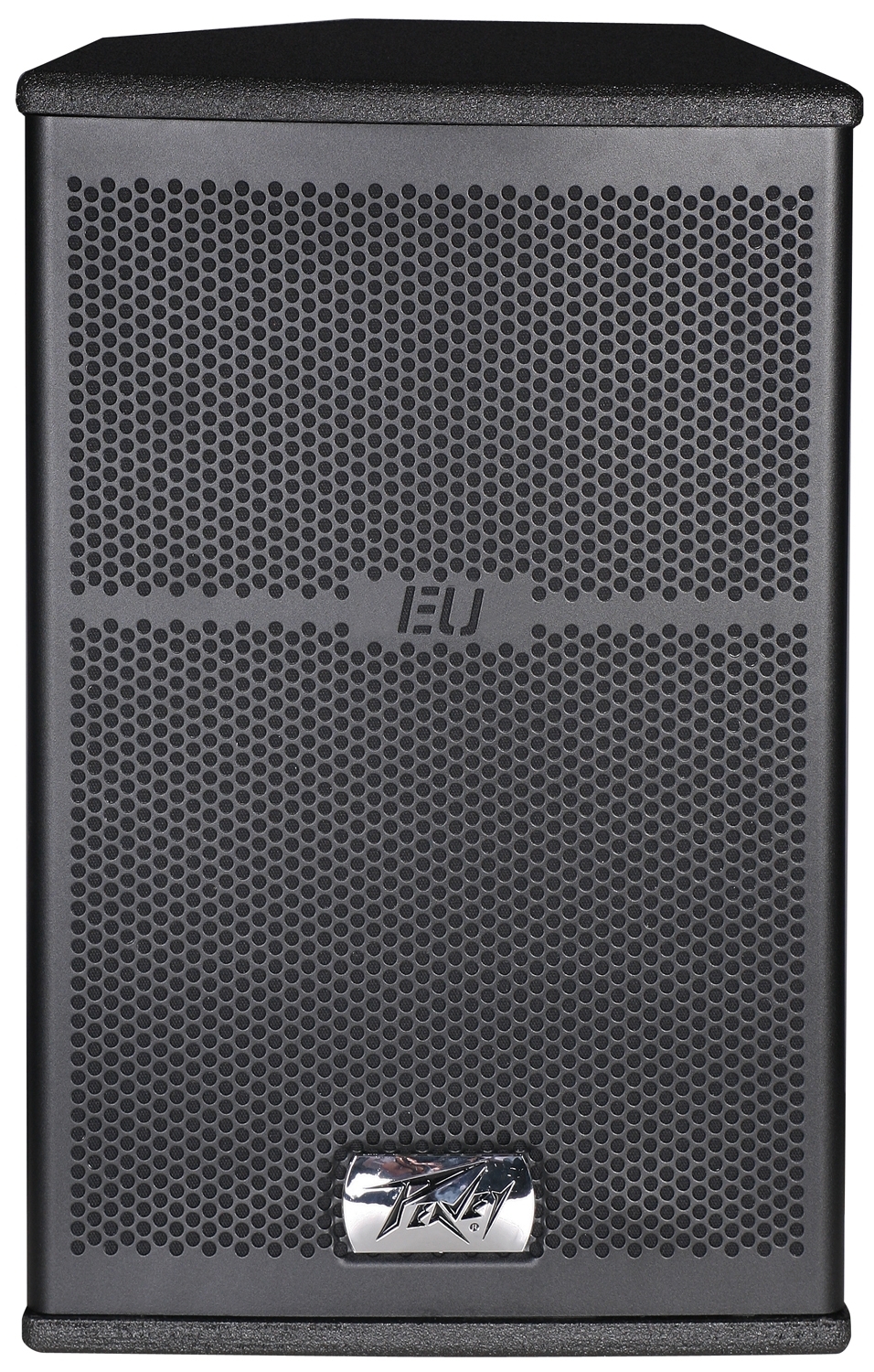

EU 112F

Overview

The EU™ 112F has a new asymmetrical Quadratic Throat Waveguide™ for the tweeter, and an enclosure made from birch plywood. It is a two-way speaker system comprised of a high output 12" Scorpion® Neo dual voice coil woofer and an RX™ 22 compression driver loaded onto the patented Quadratic Throat Waveguide™
The EU™ 112F has a trapezoidal shaped multi-angled enclosure, which reduces the build-up of standing waves inside the enclosure, which minimizes mid-bass and mid-range coloration's due to the cabinet. It is constructed of 13-ply birch plywood and is finished in a durable black HammerHead™ finish. A full-length wrap-around powder-coated perforated metal grille covers the front of the cabinet, providing a very smooth look. One side is multi-angled to allow use as a floor monitor, and a dual angle stand mount adapter is built-in on one end for precision and ease of speaker stand use. Multiple mounting points (top, bottom and sides) with 3/8 X 16 insert points allow maximum utility for flying the cabinet.


Features

• 2-way full range sound reinforcement system

• 1000 W program, 2000 W peak

• Patented Quadratic Throat Waveguide™ technology

• Asymmetrical horn aims the sound down 10°, at the audience, not over their              heads.

• Monitor use with angled side/rear panel (monitor use rubber feet provided)

  12" Scorpion® Neo dual voice coil woofer

• Full range inputs are two 4-pin twist lock connectors, and one switching Neutrik®    Speakon® bi-amp jack

• Trapezoidal birch plywood enclosure

• Durable HammerHead™ polyurethane finish

• Dual angle stand mount adapter

• Top, bottom and side flying point insert groups

• RX™ 22 compression driver with ferrofluid cooling

• Made in the U.S.A.

• Sound Guard™ III tweeter protection

• Weight Packed: 45.00 lb(20.412 kg)

• Width Packed: 18.625"(47.3075 cm)

• Height Packed: 25.5"(64.77 cm)

• Depth Packed: 17.375"(44.1325 cm)

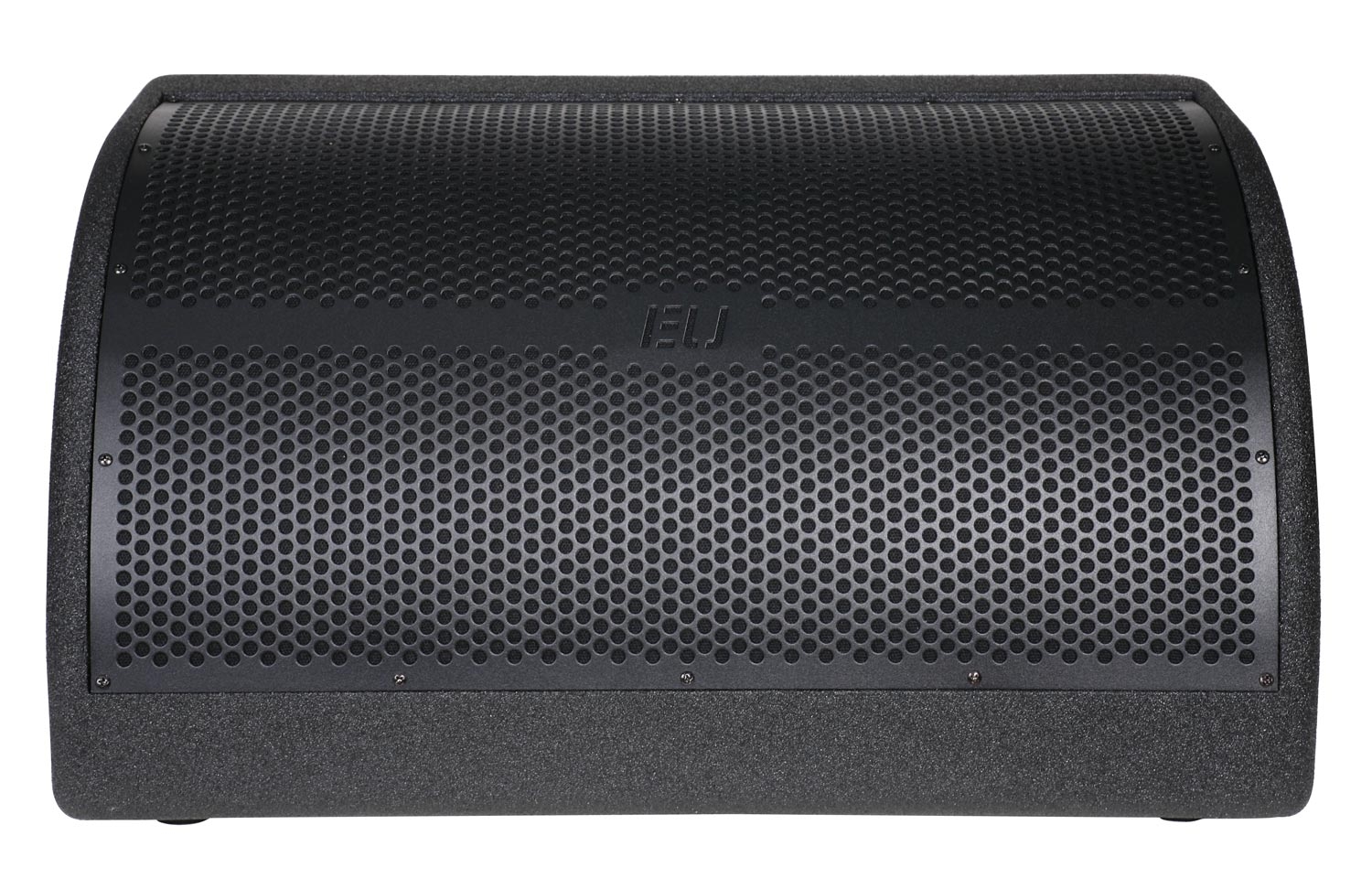

EU 112M

Overview

The EU™112M is a low-profile floor monitor for the EU series of sound reinforcement speakers. It is a two-way speaker system comprised of a high output 12" Neo Dual Voice Coil woofer with a Kevlar® impregnated cone, and an RX™22 compression driver loaded onto the patented Quadratic Throat Waveguide™, the model CH®-75. The EU 112M has a rounded external appearance, with a sloped rear top panel resulting in a multi-angled internal enclosure. This design reduces the build-up of standing waves inside the enclosure, which minimizes midbass and mid-range colorations due to the cabinet.

Features

• RX™ 22 compression driver

• 12" Neo Dual Voice Coil woofer with a Kevlar® impregnated cone

• HammerHead™ polyurethane black finish

• Full-length steel grille for speaker protection

• Weight Unpacked: 43.00 lb(19.505 kg)

• Weight Packed: 48.00 lb(21.772 kg)

• Width Packed: 21.5"(54.61 cm)

• Height Packed: 24"(60.96 cm)

• Depth Packed: 13.125"(33.3375 cm)

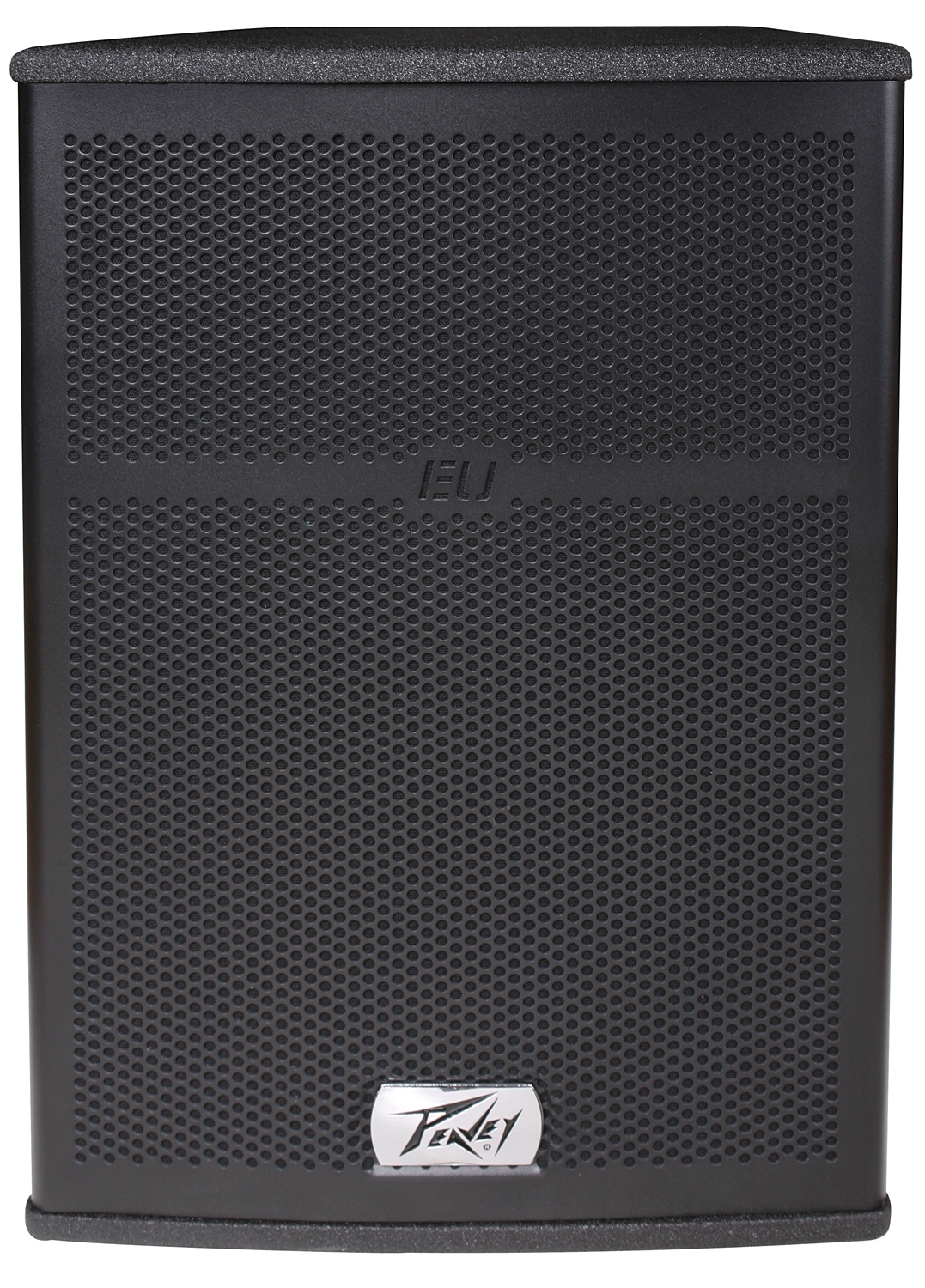

EU 115F

Overview

The EU™ 115F has a new asymmetrical Quadratic Throat Waveguide™ for the tweeter, and an enclosure made from birch plywood. It is a two-way speaker system comprised of a high output 15" Scorpion® Neo dual voice coil woofer and an RX™ 22 compression driver loaded onto the patented Quadratic Throat Waveguide™
The EU™ 115F has a trapezoidal shaped multi-angled enclosure, which reduces the build-up of standing waves inside the enclosure, which minimizes mid-bass and mid-range coloration's due to the cabinet. It is constructed of 13-ply birch plywood and is finished in a durable black HammerHead™ finish. A full-length wrap-around powder-coated perforated metal grille covers the front of the cabinet, providing a very smooth look. One side is multi-angled to allow use as a floor monitor, and a dual angle stand mount adapter is built-in on one end for precision and ease of speaker stand use. Multiple mounting points (top, bottom and sides) with 3/8 X 16 insert points allow maximum utility for flying the cabinet.

Features

• 1000W Program, 2000W Peak

• 15" Neo Dual Voice Coil High Performance Woofer

• Patented Quadratic Throat Waveguide™ Technology

• Asymmetrical Horn Directs The Sound Down To The Audience

• Rx™22 Compression Driver With Ferrofluid Cooling

• Full Range Inputs Are Two Neutrik® Speakon® 4-Pin Jacks

• Durable Hammer Head™ Polyurethane Finish

• Stand-Mount Adapter

• Ultra Compact Design

• Sound Guard™ Iii Tweeter Protection

• Trapezoidal Ultra-Light Plywood Enclosure

• Weight Packed: 57.00 lb(25.855 kg)

• Width Packed: 20"(50.8 cm)

• Height Packed: 29.25"(74.295 cm)

• Depth Packed: 19.875"(50.4825 cm)

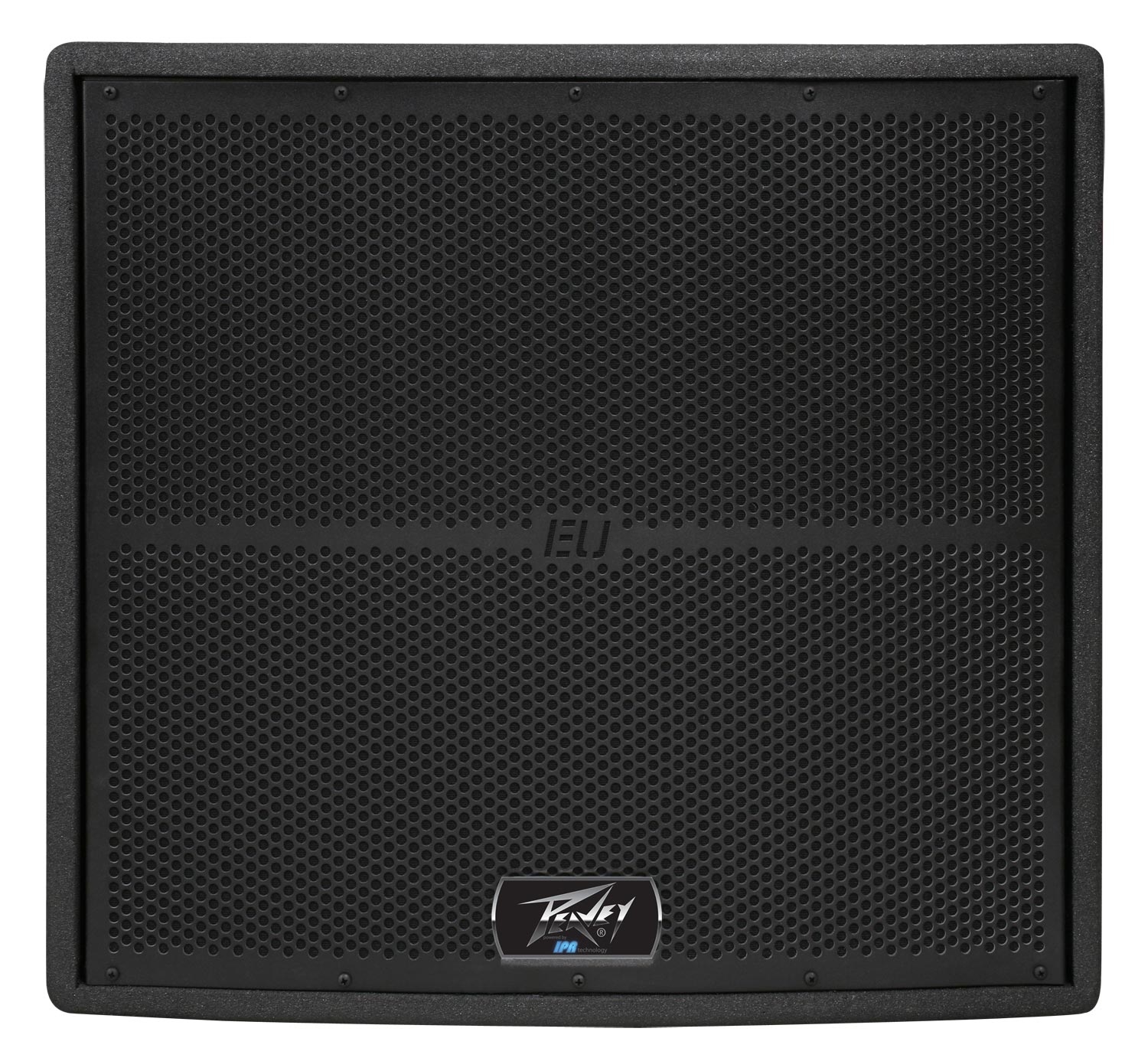

EU 118D

Overview

The EU 118D features a 1,000-watt Peavey IPR power section and a Low Rider® 18 woofer in a highly rugged enclosure. The EU 118D also features a fourth order Linkwitz-Riley crossover that has eight selectable low frequency crossover points, a crossover in/out switch, low frequency enhancement, and a high-pass output to send the signal out to an EU powered high/mid enclosure.

Features

• 1,000W IPR™ power amplifier

• Full power handling down to 34 Hz

• Fourth order Linkwitz-Riley crossover with eight discrete low-frequency crossover    points

• Bass enhancement circuit

• Crossover in/out switch

• Field-replaceable basket

• Compact and lightweight design

• Speaker pole mount

• Heavy-duty steel handles inset on both sides

• HammerHead™ Polyurethane black finish

• Full-length, perforated steel grille for speaker protection

• 18" Peavey Low Rider® subwoofer

• Servo Feedback controlled woofer

• High-pass thru jack
