Versarray™ Series

Innoavations for the Most Challenging Live Music Productions

The Peavey Versarray™ features planar ribbon drivers, neodymium-loaded woofers and exclusive angle adjustment technology to set a new benchmark for high fidelity, high-level sound reinforcement.

A veteran of major concert tours such as Ozzfest, Tim McGraw and the Rockstar® Mayhem Festival, the Versarray line array offers extreme versatility in the most demanding sound-reinforcement applications.

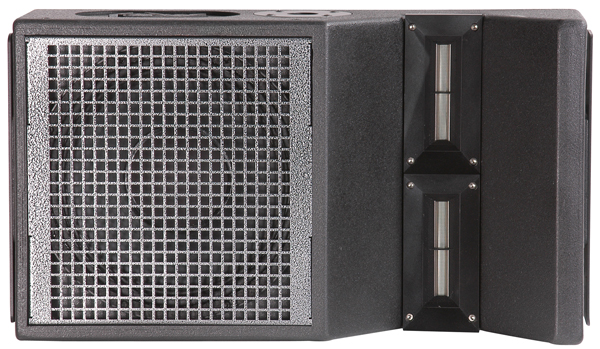

Versarray 112 MKII

Overview

The Versarray™ 112 MKII Ribbon Driver LIne Source Array module consists of a new 12" Neo Black Widow® woofer combined with a neodymium-based Peavey RD™ woofer combined with a neodymium-based Peavey RD™ 1.6 ribbon driver in a cabinet with a highly flexible rigging system. Designed to provide modualr coverage of small medium venues, and intended for use with the companion Versarray Sub models, the Versarray 112 MKII offers extreme versatility and high-performance capability.

Features

• Two-way Bi-Amp Ribbon Line Source Array SR System

• 12" Neo Black Widow® 4" VC Woofer

• 1,000 watt program, 2000 watt peak power handling

• New Ribbon Driver with Neo magnet, 50% more power handling and 2dB more          sensitivity!

• 90 Degrees H by 15 Degrees V coverage pattern (per one cabinet)

• Easy aiming angle adjustment rigging system Angle adjustable in 2 1/2 degree          increments from 0 to 15 degrees, total angle betwwn adjacent cabinets

• Sound Guard™ tweeter protection

• Inputs are two Neutrik® Speakon® 4-pin jacks in parallel

•18mm 13-ply Baltic birch enclosure

• Durable HammerHead™ polyurethane finish

• Weight Unpacked: 64.82 lb(29.4 kg)

• Weight Packed: 70.55 lb(32 kg)

• Width Packed: 17"(43.18 cm)

• Height Packed: 27.25"(69.215 cm)

• Depth Packed: 14.5"(36.83 cm)

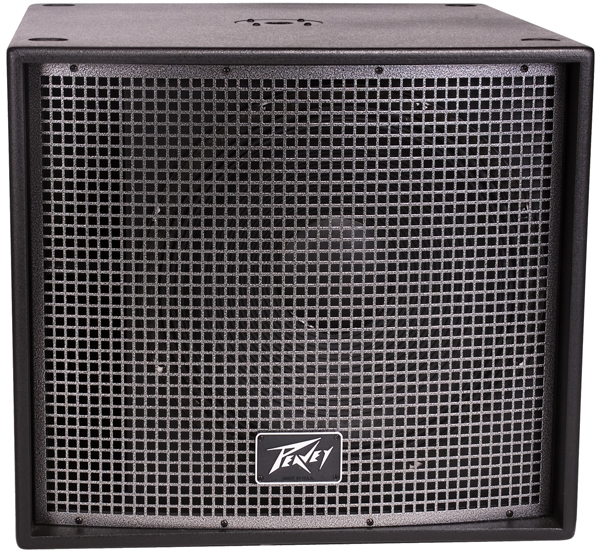

Versarray 118

Overview

With premium 13-ply Baltic birch construction, a durable acrylic polyurethane finish and a 16-gauge, powder-coated perforated metal grille, the Versarray 118 is built to endure years of heavy use. The cabinet is well braced and stiff, and the large vent area and long path allow for huge volumes of air to cool the enclosure with low resistance. Input connections are made via two 4-pin Neutrik® jacks in parallel, or an 8-pin Neutrik with a 4-pin Neutrik thru jack for bi-amping. An optional mounting pole can support a two-box array of Versarray 112 enclosures.

Features

• 4800 watts peak

• Frequency Response: 45 Hz to 1.5 kHz (anechoic environment)

• Full-power low-frequency response down to 38 Hz

• One 18" vented Lo Max® woofer, 8 ohms

• Two Neutrik® four-pin Speakon® inputs in parallel

• One Neutrik® eight-pin Speakon® input

• One Neutrik® four-pin Speakon® thru input (use with eight-pin input)

• Durable GatorHyde® finish

• Made in the U.S.A.

• Power Handling: 1200 watts continuous, 2400 watts program

• Weight Unpacked: 113.10 lb(51.3 kg)

• Weight Packed: 123.46 lb(56 kg)

• Width Packed: 28.375"(72.0725 cm)

• Height Packed: 29.5"(74.93 cm)

• Depth Packed: 25.25"(64.135 cm)

Versarray 212

Overview

The Versarray™ 212 array is loaded with dual 12" Black Widow® Neo speakers with 4" voice coils, ten 2.5" neo midrange speakers arranged in two banks of five each, and four 4.75" planar dynamic ribbon tweeter line sources on a waveguide. Designed to provide modular coverage of medium to large venues and intended for use with the companion Versarray Sub models, the Versarray 212 offers extreme versatility in highly demanding performance situations. The low-frequency section handles 2,000 watts program, while the mid and high sections handle 400 watts program each.

Features

• Low Frequency power handling: 2000 watts program, 4000 watts peak

• High Frequency power handling: 400 watts program, 800 watts peak

• Frequency Response: 70Hz - 20 kHz

• 90 x 15 coverage pattern (per line array module)

• Dual 12" vented Black Widow® Neo woofers with dual 4" voice coils

• Durable GatorHyde® finish

• Ten 2.5" NEO Midranges in dual line array source

• Two Neutrik® Speakon® 8-pin inputs in parallel

• Four Planer Ribbon Tweeters with NEO magnets on a manifold line source

• Weight Unpacked: 93.00 lb(42.184 kg)

• Weight Packed: 106.30 lb(48.216 kg)

• Width Packed: 16.75"(42.545 cm)

• Height Packed: 45"(114.3 cm)

• Depth Packed: 15.25"(38.735 cm)

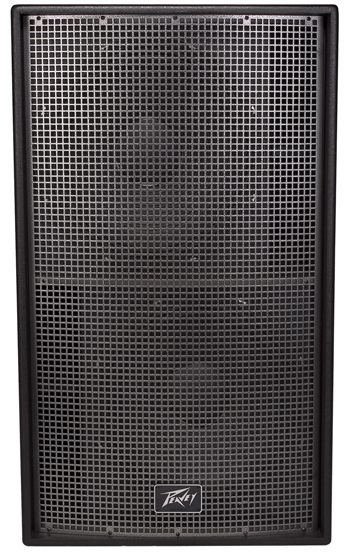

Versarray 218

Overview

An incredible 4,800-watt program rating is made possible by Kevlar®-impregnated cones that increase strength and minimize distortion, as well as polymide-impregnated fiberglass formers, die-cast aluminum frames and 4-inch diameter edge-wound voice coils with solderless, diffusion-welded OFHC copper leads. The Versarray 218 also features the Peavey UniVent™ venting system (U.S. Patent #6,549,637), which uses an exclusive process to literally pump cool outside air through the enclosure, maintaining cool operating temperatures, increasing reliability and reducing power compression under heavy continuous-drive conditions. With premium 13-ply Baltic birch construction, a durable acrylic polyurethane finish and a 16-gauge, powder-coated perforated metal grille, the Versarray 218 is built to endure years of heavy use, and tilt-back 4" casters allow easy transport and setup along the way. Input connections are made via two 4-pin Neutrik® jacks in parallel, or an 8-pin Neutrik with a 4-pin Neutrik thru jack for bi-amping. An optional bolt-on Ground Stack Kit allows users to mount up to three Versarray 112 enclosures with full articulation.

Features

• Power Handling: 2400 watts continuous, 4800 watts program
• 9600 watts peak
• Frequency Response: 45 Hz to 1.5 kHz (anechoic environment)
• Full-power low-frequency response down to 38 Hz
• Two 18" vented Lo Max® woofers
• 4/8 ohms selectable
• Two Neutrik® 4-pin Speakon® inputs in parallel
• One Neutrik® 8-pin Speakon® input
• One Neutrik® 4-pin Speakon® thru imput (use with 8-pin input)
• Patented UniVent vented cooling system (U.S. Patent #6,549,637)
• Durable GatorHyde® finish
• Made in the U.S.A.
• Weight Unpacked: 200.00 lb(90.72 kg)
• Weight Packed: 215.00 lb(97.524 kg)
• Width Packed: 28.5"(72.39 cm)
• Height Packed: 45"(114.3 cm)
• Depth Packed: 28.5"(72.39 cm)
