PV Series

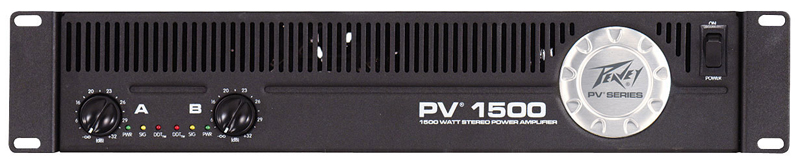

PV 1500

Overview

All the features and proven reliability. The PV® 1500 features DDT™ distortion detection technique virtually eliminating distortion. It also features Peavey's patented Turbo-V™ cooling design, which cools the power transistors more evenly than traditional heat-sink designs.

Features

• Two built-in 150 Hz crossovers
• 500 watts (rms) per channel at 4 ohms
• 300 watts (rms) per channel at 8 ohms
• Separate Speakon® mono bridge output
• Two-speed demand-sensitive fan
• 2-rack-space stereo power amp featuring DDT protection
• Weight Unpacked: 33.50 lb(15.195 kg)
• Weight Packed: 41.00 lb(18.597 kg)
• Width Packed: 6.25"(15.875 cm)
• Height Packed: 22.62"(57.4548 cm)
• Depth Packed: 21"(53.34 cm)

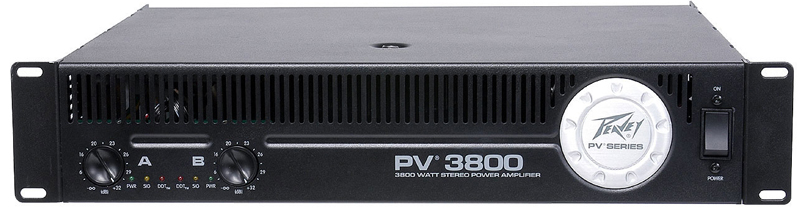

PV 3800

Overview

Add a 2,650-watt PV 3800 amp to your Bi-Pack system for a tri-amped system! Our highest-power PV Series power amp utilizes a crossover specially tailored for subwoofers and the high power necessary to drive them. Load Fault Correction circuitry along with our famous DDT™ speaker protection and Turn On/Turn Off protection allow operation with greater efficiency, even under difficult loads and power conditions. The PV 3800 connects to a PV 1600 Bi-Pack through a simple 1/4" or XLR cable.

Features

• Turn On/Turn Off protection and FLS (Fault Load Correction)
• 1300 watts per channel at 4 ohms
• 775 watts per channel at 8 ohms
• 2650 watts bridged at 8 ohms
• Twin temperature-dependant variable-speed fans
• 2-rack-space, 2-channel power amp with DDT protection
• Weight Unpacked: 44.50 lb(20.185 kg)
• Weight Packed: 52.00 lb(23.587 kg)
• Width Packed: 5.87"(14.9098 cm)
• Height Packed: 22.5"(57.15 cm)
• Depth Packed: 21"(53.34 cm)
