PV® Series (Active)

Proven Party Starters and Essential Gear for the Stage

Hartley Peavey founded Peavey Electronics on the principle of making high-quality, professional gear that sounds great but won't break the bank. We've been honing that art since 1965, and no sound reinforcement line combines performance and value like our PV Series. A full range of enclosures, subwoofers and monitors, the PV Series stacks up with heavy-duty loudspeakers, titanium compression drivers and impressive high-power handling.

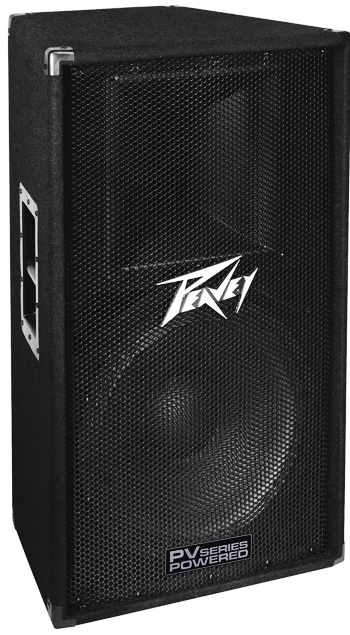

PV 115D

Features

• 400 Watts "peak" available power

• 800 Watts "peak" available power when connecting an additional passive 8 Ohm        enclosure to the speaker out

• Two-way powered sound reinforcement enclosure

• DDT™ compression/anti-clipping protection

• Signal input via combo female XLR/ 1/4" phone jack, providing balanced                    operation

• Constant directivity tweeter horn, 60° X 40°

• Contour switch provides bass and treble lift

• Heavy-duty crossover network with high frequency driver protection

• Steel handles and protective corners

• Full-coverage heavy-duty perforated steel grill with powder coat finish

• RX™14 titanium diaphragm compression driver, with 1.4" titanium diaphragm

• Steel pole mount adaptor

• Peavey® exclusive 15" heavy-duty woofer with 2 3/8" voice coil & 50 oz. magnet

• T-Nut speaker mounting

• Class-D powered system with up to 800 W total peak available power

• Power amp output jack available to power another passive speaker

• Carpet covered trapezoidal enclosure

• Weight Packed: 61.00 lb(27.669 kg)

• Width Packed: 20.25"(51.435 cm)

• Height Packed: 33.5"(85.09 cm)

• Depth Packed: 16"(40.64 cm)

• Depth Packed: 24.37"(61.8998 cm)

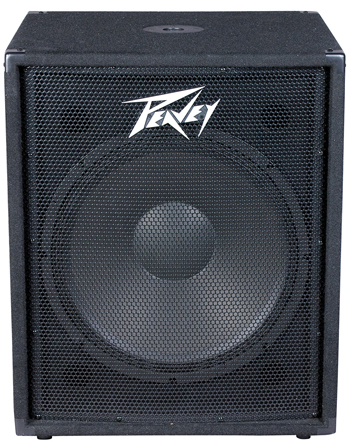

PV 118D

Features

• DDT™ compression

• Crossover frequency 120 Hz

• Bass contour circuit

• 4th order Linkwitz-Riley crossover

• 18" heavy duty woofer

• Woofer Servo for reduced woofer distortion

• Peak SPL up to 119 dB with music

• Female XLR mic- or line-level balanced input

• Male XLR thru, switchable either high-pass or thru

• One 1/4" phone jacks for speaker-in capability

• Class D powered system with 300 W total power

• Weight Unpacked: 79.81 lb(36.2 kg)

• Weight Packed: 85.54 lb(38.8 kg)

• Width Packed: 25"(63.5 cm)

• Height Packed: 29.5"(74.93 cm)

• Depth Packed: 22.875"(58.1025 cm)

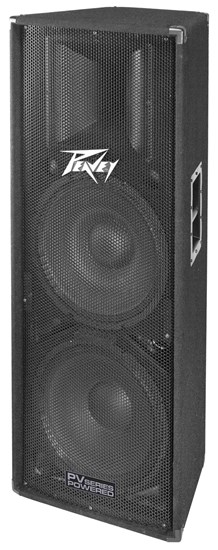

PV 215D

Features

• 800 Watts "peak" available power

• Quasi-three-way powered sound reinforcement enclosure

• RX™14 titanium diaphragm compression driver, with 1.4" titanium diaphragm

• Constant directivity tweeter horn, 60° X 40°

• Class-D powered system with up to 800 W total peak available power

• DDT™ compression/anti-clipping protection

• Signal input via combo female XLR/1/4" phone jack, providing balanced operation

• Heavy-duty crossover network with high frequency driver protection

• Carpet covered trapezoidal enclosure

• Steel handles and protective corners

• Full-coverage heavy-duty perforated steel grill with powder coat finish

• T-Nut speaker mounting

• Peavey® exclusive dual 15" heavy-duty woofers with 2 3/8" voice coil & 50 oz            magnet

• Contour switch provides bass and treble lift

• Weight Packed: 86.00 lb(39.008 kg)

• Width Packed: 20.5"(52.07 cm)

• Height Packed: 50"(127 cm)

• Depth Packed: 17"(43.18 cm)

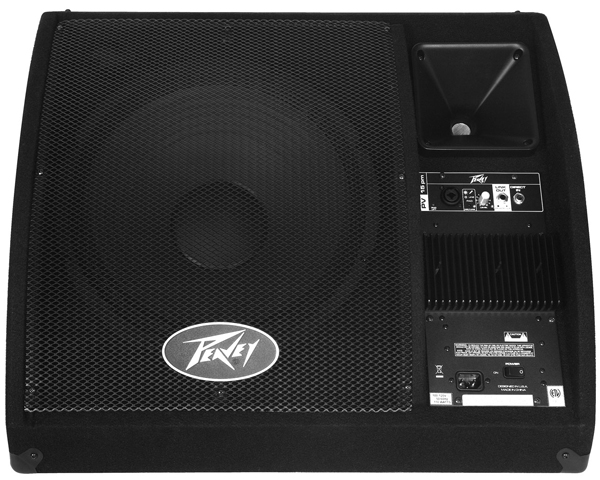

PV 15PM

Features

• Both power amps have DDT™ speaker protection

• 15" heavy duty woofer with 2-3/8" voice coil and neodymium magnet

• Woofer Servo for reduced woofer distortion

• Automatic equal loudness (Fletcher-Munson) compensation

• 14T 1.4" titanium compression driver

• Peak SPL up to 120 dB with music

• Combo jack with 1/4" TRS and female XLR mic- or line-level balanced input

• Two 1/4" phone jacks for link-out / direct-in capability

• Bi-amplified Class D powered system with 200 W total power

• Weight Unpacked: 49.82 lb(22.6 kg)

• Weight Packed: 55.56 lb(25.2 kg)

• Width Packed: 19.375"(49.2125 cm)

• Height Packed: 27.75"(70.485 cm)

• Depth Packed: 17.25"(43.815 cm)
